Step 1 : Get access to the Cequence API testing docker image

Request for credentials to download the latest API testing docker image (Skip this step if you already have valid credentials)

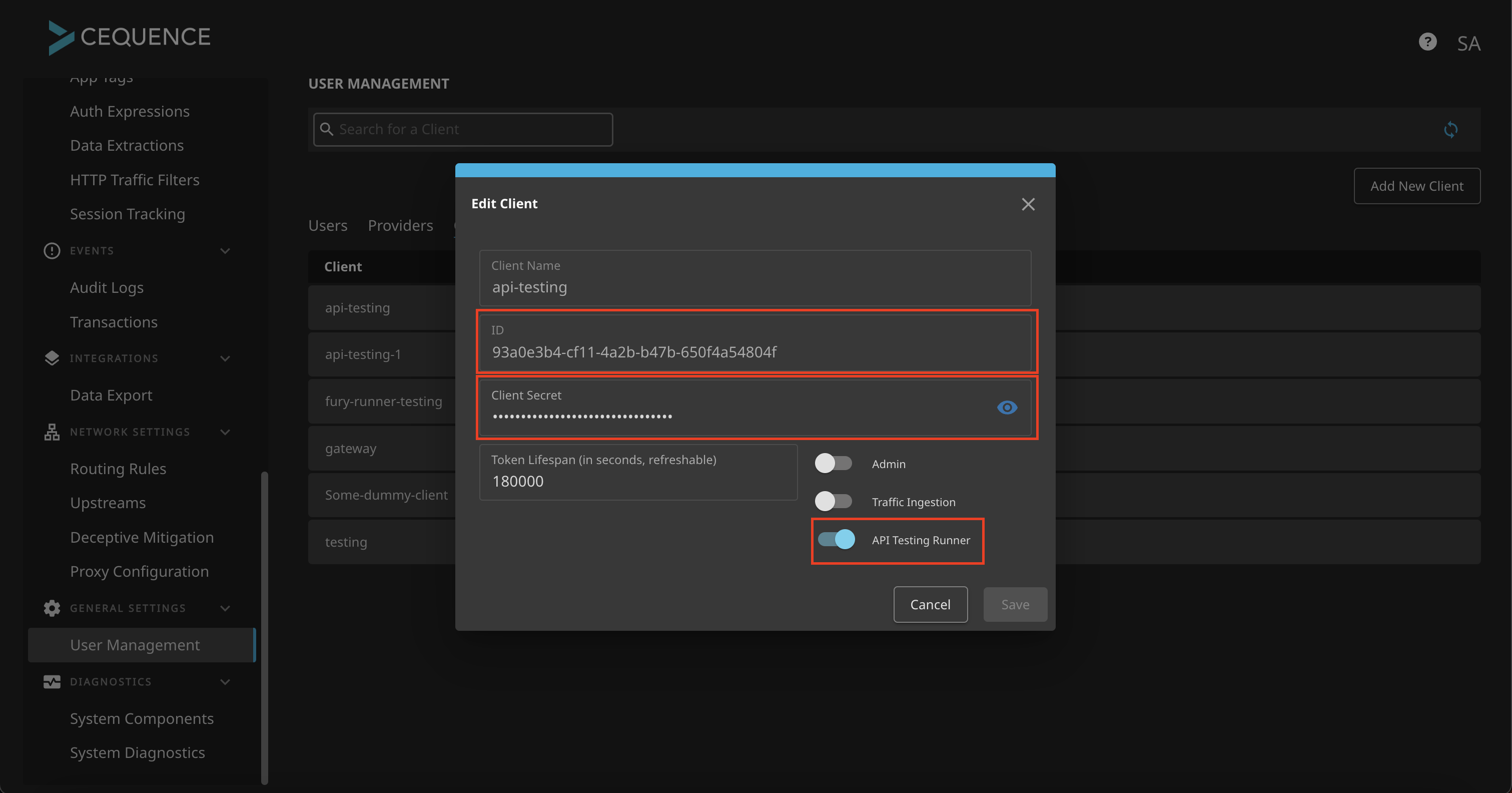

Step 2 : Get the Client details

Refer the Cequence documentation here on the steps to create a new client.

Ensure that the client you’d like to use has the API Testing Runner role enabled

Make a note of the Client ID and the Client Secret of your client

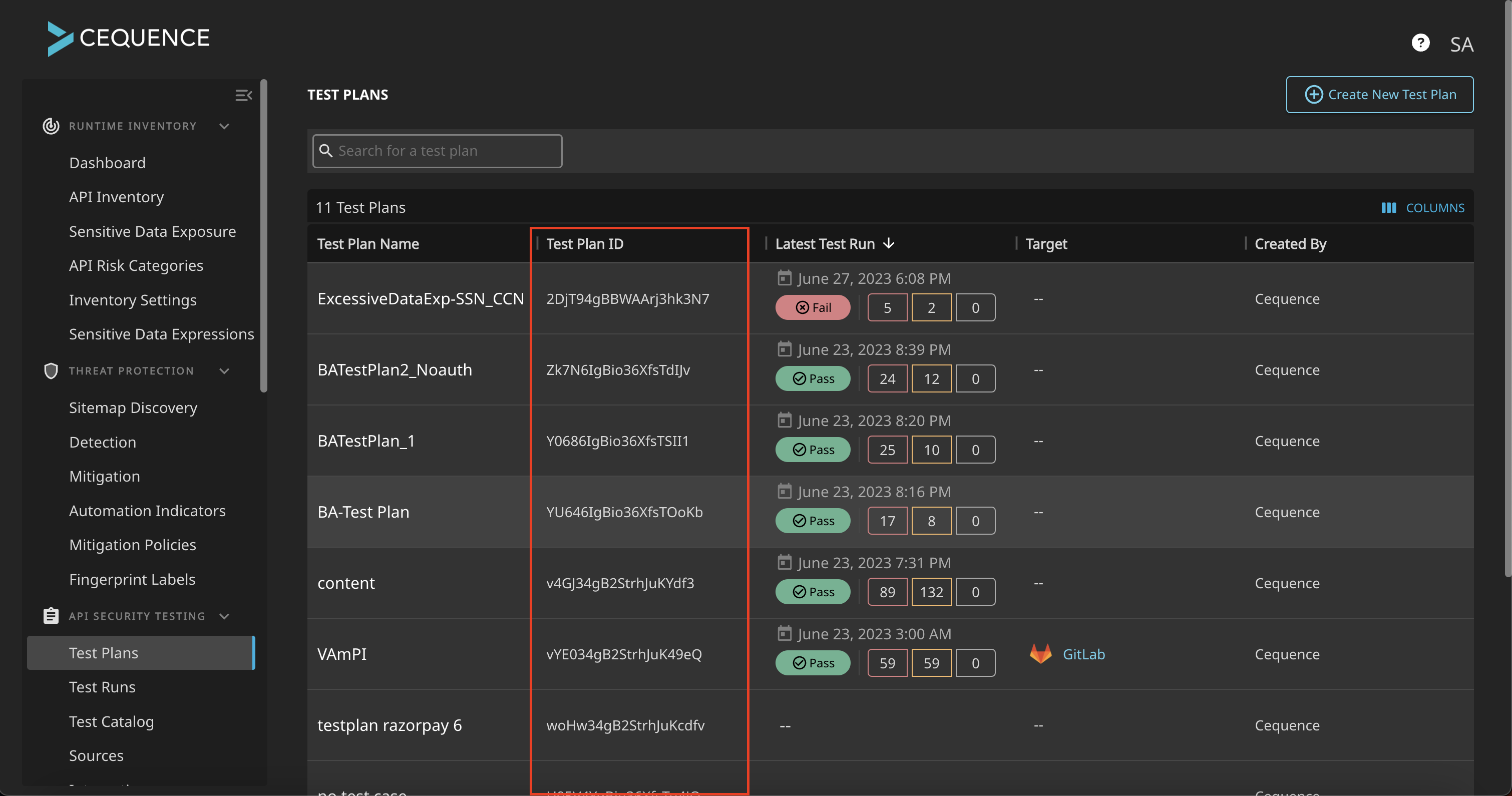

Step 3 : Get the Test Plan details

Identify the test plan that you’d like to run from the list present in API Security Testing: Test Plans (create a new Test Plan if one does not exist)

Make a note of the Test Plan ID for your selected test plan

Step 4 : Get the Target details

Target refers to the API endpoint that you’d like Cequence to test during the CI/CD run. Make a note of the Base Host, Target Host and Target Server

For example, if Cequence needs to test an endpoint present at https://demo.example.com, then

Base Host = example.com

Target Host = demo.example.com

Target Server = https://demo.example.com

Step 5 : Create the snippet for the CI/CD configuration file

Set up your pipeline’s environment variables as follows:

• Variable name = username, value = <Insert the username obtained in step 1>
• Variable name = password, value = <Insert the password obtained in step 1>

Complete the snippet below by filling the sections marked with <> and add it to your pipeline’s configuration file as per your need

pipeline {
    agent { node { label 'docker-pipeline' } }

    environment{
        BUILD_URL = "${env.BUILD_URL}"
    }

    stages {
        stage("apiSecurityTest"){
            steps {
                echo "The build URL is ${env.BUILD_URL}"
                withCredentials([string(credentialsId: 'user-name', variable: 'user-name')]) {
                    sh 'docker login registry.gitlab.com -u username -p $password'
                    sh 'docker pull registry.gitlab.com/cequence/api-testing/{{latest-release-version}}'
                    sh 'docker images'
                    sh 'docker run -e CQ_UAP_CLIENT_ID="<Insert the client id from step 2>" \
                                   -e CQ_UAP_CLIENT_SECRET="<Insert the client secret from step 2>" \
                                   -e CQ_TEST_PLAN_ID="<Insert the test plan id from step 3>" \
                                   -e CQ_UAP_BASE_HOST="<Insert the base host from step 4>" \
                                   -e CQ_TEST_TARGET_HOST="<Insert the target host from step 4>" \
                                   -e CQ_TEST_TARGET_SERVER="<Insert the target server from step 4>" \
                                   -e CQ_TEST_RUN_CICD_LINK=${BUILD_URL} registry.gitlab.com/cequence/api-testing/fury-runner'
                }
                echo " The End...."
            }
        }
    }
}
